$5,399.00

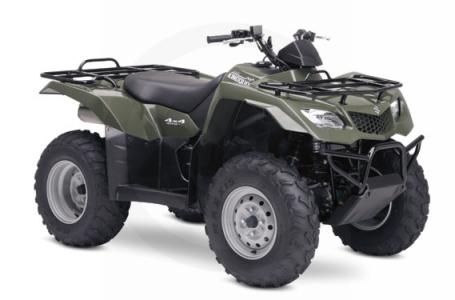

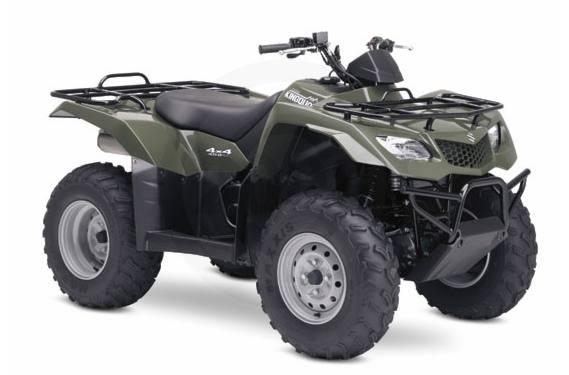

2008 Suzuki KingQuad® 400AS
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

There's no limit to how tough and versatile a middleweight ATV can be. For proof, check out the KingQuad 400 4x4 Automatic. The KingQuad 400 lets you quickly and conveniently select two- or four-wheel drive operation. And whether you have a long day of work ahead or a long trail in front of you, you'll appreciate your KingQuad's load of technically advanced features.

    New Features
    • New angular and aggressive new bodywork featuring high clearance fenders, the distinctive KingQuad headlights and grill, a new t-shaped seat, and higlighted by a new large diameter steel tube bumper
    • New larger 4.2 gallon fuel tank for increased riding range and improved rider comfort
    • Large 190mm diameter front disc brakes combined with new front brake calipers featuring larger pistons and brake pads for improved braking performance.
    • New Maxxis tires featuring an aggressive dual stage tread pattern for consistent traction and a quiet ride are mounted on durable steel wheels
    • New gate-type shift lever is now mounted on the left side providing simple and precise shifting in various riding conditions
    Engine Features
    • Dependable air/oil cooled, single cylinder, 4-valve, 4-stroke engine tuned for high torque output and quick acceleration. Gear-driven balancer shaft reduces vibration
    • High capacity oil-cooler ensures consistent engine operating temperature with a thermostat-controlled electric fan
    • KeihinT CVK32 carburetor provides smooth throttle response and high fuel efficiency - includes throttle pulley system designed for light throttle lever operation
    • V-belt CVT QuadMatic transmission with high/low range and reverse - all controlled by a single automotive-style, fuel tank-mounted gear selection lever
    • Choose 2WD or 4WD operation with convenient handlebar-mounted control lever
    • Torque-sensing limited-slip front differential provides maximum traction and light steering in tight turns
    • Advanced engine brake system minimizes free-wheeling to reduce downhill speed
    • Electric and recoil starting with "in gear" starting capability - engine will start in any transmission setting by pulling the hand brake lever and pressing the starter button
    • CDI ignition and powerful 220 watt charging system with maintenance-free battery
    Chassis Features
    • Styled for a big, strong appearance with high radius fenders, a rugged-style grill and large front bumper designed for easy winch installation
    • Compact instrument display including speedometer, odometer, tripmeter, and indicator lights for neutral, reverse and oil temperature
    • 12V/120W electrical outlet mounted in left front fender - standard automotive-style outlet fits a wide range of electrical accessories
    • Twin 30/30W fender-mounted multi-reflector headlights, plus large 5/21W combination taillight and brake light as standard equipment
    • Durable steel frame made of large diameter, thin-wall tubing for maximum strength and minimal weight
    • Lightweight polyethylene skid plate and bumper guard provide maximum protection with minimal resistance over rocks and other obstacles
    • Independent double A-arm front suspension with class-leading 6.7 in. of wheel travel for a comfortable ride on all types of terrain
    • Swingarm-style rear suspension with oil-damped shock absorbers provide 6.69 in. of wheel travel and 9.3 in. of ground clearance
    • High-capacity racks and towing capacity, plus 4.0 liter storage box is now located and protected under the seat
    Specifications
    • Engine: 376cc, SOHC, four-stroke, single cylinder, air/oil-cooled
    • Bore Stroke: 82.0 x 71.2mm
    • Compression Ratio: 9.0:1
    • Fuel System: KeihinT CVK32
    • Lubrication: Wet sump
    • Ignition: CDI
    • Transmission: V-belt CVT automatic with high/low range sub-transmission, 2WD/4WD front differential
    • Final Drive: Shaft drive
    • Overall Length: 2175mm (85.6 in.)
    • Overall Width: 1145mm (45.1 in.)
    • Overall Height: 1200mm (47.2 in.)
    • Seat Height: 830mm (32.7 in.)
    • Ground Clearance: 235mm (9.3 in.)
    • Wheelbase: 1270mm ( 50.0 in.)
    • Dry Weight: 268kg (590 lbs.)
    • Suspension Front: Independent, double A-arm, oil-damped
    • Suspension Rear: Swingarm-type, oil-damped
    • Brakes Front: Dual hydraulic discs
    • Brakes Rear: Single mechanical drum
    • Tires Front: AT 25 x 8-12
    • Tires Rear: AT 25 x 10-12
    • Fuel Tank Capacity: 15.0 liter (4.0 gallon)
    • Color: Red, Green
    NOTES:

    Minimum Age: 16 Years Old.


    Specifications and features are subject to change.


    Specifications

    Engine
    Engine Type SOHC, four-stroke
    Displacement 376 cc
    Bore x Stroke 82.0 x 71.2 mm
    Cylinders Single
    Engine Cooling Air/oil-cooled
    Fuel System KeihinT CVK32
    Starting System Ignition: CDI; Electric and recoil starting with "in gear" starting capability
    Chassis
    Front Suspension Independent, double A-arm, oil-damped
    Front Travel 6.7 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT 25 x 8-12
    Rear Suspension Swingarm-type, oil-damped
    Rear Travel 6.69 in.
    Rear Brake Type Single mechanical drum
    Rear Tires AT 25 x 10-12
    Frame Durable steel frame made of large diameter, thin-wall tubing for maximum strength and minimal weight
    Dimensions/Capacities
    Dry Weight 590 lbs (268 kg)
    Towing Capacity High-capacity
    Fuel Capacity 4.0 gal (15.0 l)
    Ground Clearance 9.3 in. (235 mm)
    Machine Dimensions (LxWxH) 85.6 x 45.1 x 47.2 in. (2175 x 1145 x 1200 mm)
    Wheelbase 50.0 in. (1270 mm)
    Drive Train
    Final Drive Shaft drive
    Transmission V-belt CVT automatic with high/low range sub-transmission, 2WD/4WD front differential
    General
    Speedometer Compact instrument display
    Odometer Compact instrument display
    Lighting Twin 30/30W fender-mounted multi-reflector headlights, plus large 5/21W combination taillight and brake light
    Colors Red, Green
    Warranty 6 month limited warranty

    Compare Models

    		 Print








    Year 2008
    Manufacturer Suzuki
    Model KingQuad® 400AS
    Style Utility
    MSRP* $5,399.00
    Chassis
    Front Suspension Independent, double A-arm, oil-damped
    Front Travel 6.7 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT 25 x 8-12
    Rear Suspension Swingarm-type, oil-damped
    Rear Travel 6.69 in.
    Rear Brake Type Single mechanical drum
    Rear Tires AT 25 x 10-12
    Frame Durable steel frame made of large diameter, thin-wall tubing for maximum strength and minimal weight
    Dimensions/Capacities
    Dry Weight 590 lbs (268 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity High-capacity
    Fuel Capacity 4.0 gal (15.0 l)
    Ground Clearance 9.3 in. (235 mm)
    Machine Dimensions (LxWxH) 85.6 x 45.1 x 47.2 in. (2175 x 1145 x 1200 mm)
    Wheelbase 50.0 in. (1270 mm)
    Drive Train
    Drive Train
    Final Drive Shaft drive
    Transmission V-belt CVT automatic with high/low range sub-transmission, 2WD/4WD front differential
    Engine
    Engine Type SOHC, four-stroke
    Displacement 376 cc
    Bore x Stroke 82.0 x 71.2 mm
    Cylinders Single
    Engine Cooling Air/oil-cooled
    Fuel System KeihinT CVK32
    Starting System Ignition: CDI; Electric and recoil starting with "in gear" starting capability
    Alternator
    General
    Speedometer Compact instrument display
    Tachometer
    Odometer Compact instrument display
    Lighting Twin 30/30W fender-mounted multi-reflector headlights, plus large 5/21W combination taillight and brake light
    Colors Red, Green
    Warranty 6 month limited warranty
